■Features/特征   Various high power inductors are superior to be high    saturation for surface mounting.  ■Applications/用處   Power supply for VTR, OA equipment, digital camera, LCD TV set, notebook PC, partable communication equipments, DC/DC converters, etc

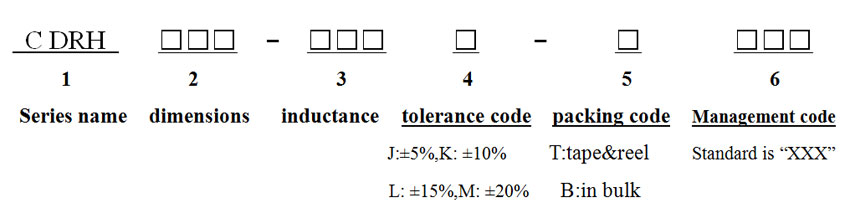

■Part numbering system/型號標示法

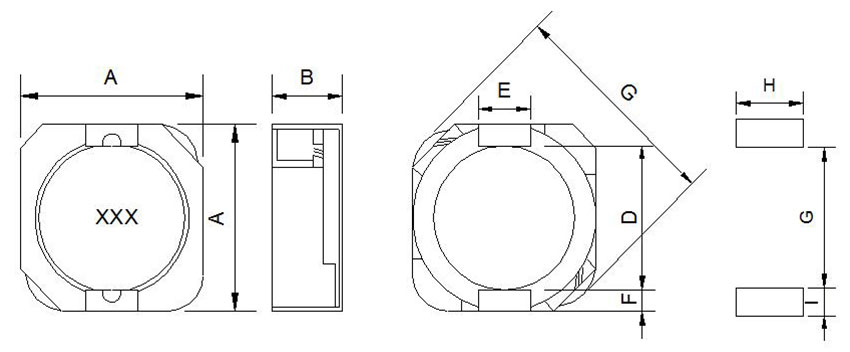

■Shapes and dimensions/形狀及尺寸 (UNIT:mm)

Type	Amax	Bmax	Cmax	D	E	F	G	H	I
CDRH103R	10.50	3.10	13.50	7.70	3.00	1.20	7.30	3.20	1.60
CDRH104R	10.50	4.00	13.50	7.70	3.00	1.20	7.30	3.20	1.60
CDRH105R	10.50	5.10	13.50	7.70	3.00	1.20	7.30	3.20	1.60

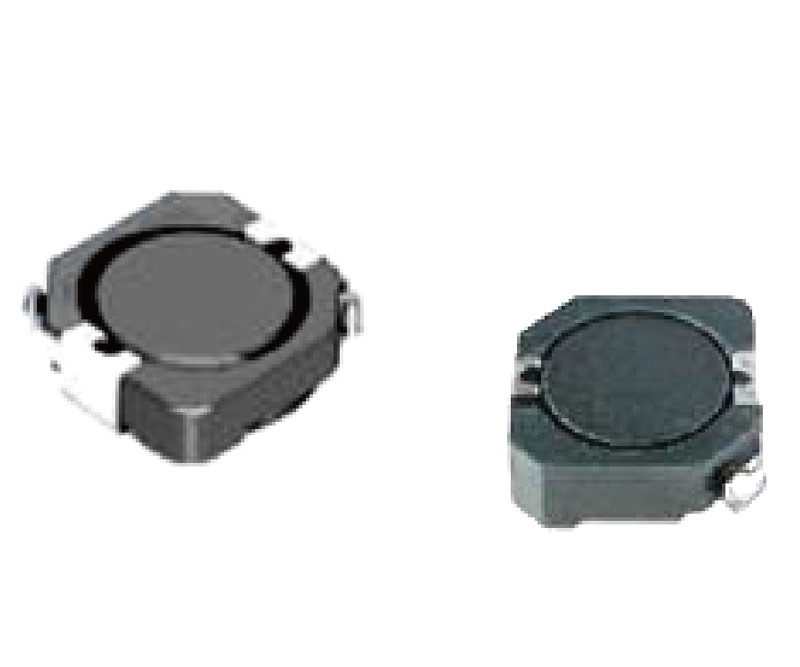

■SERIES: CDRH103R/104R/105R

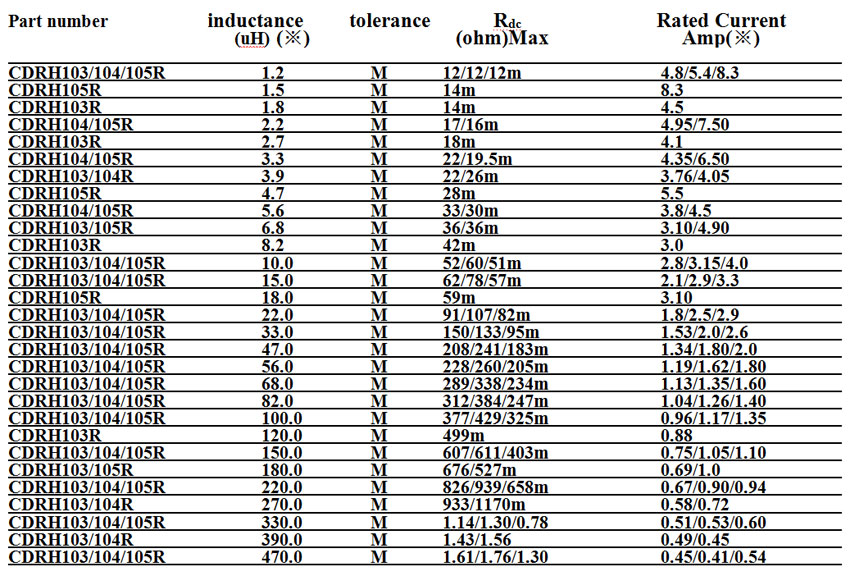

※更多電壓電流變壓器電數值為能否或知足電壓電流變壓器堆砌同意電壓電流變壓器電和攝氏度持續上升同意值的電壓電流變壓器電壓電流變壓器電值※Inductance Test Fr. 100KHz 100mA(HP 4277A) at 20℃(L<10uH時)  Inductance Test Fr. 1.0KHz 100mA(HP 4277A) at 20℃(L>10uH時)※不完善列舉出所有的品種尺寸,不列于表內的電感量品種尺寸可連洽科學研究定制化

■Real Packing of  SMT Inductor

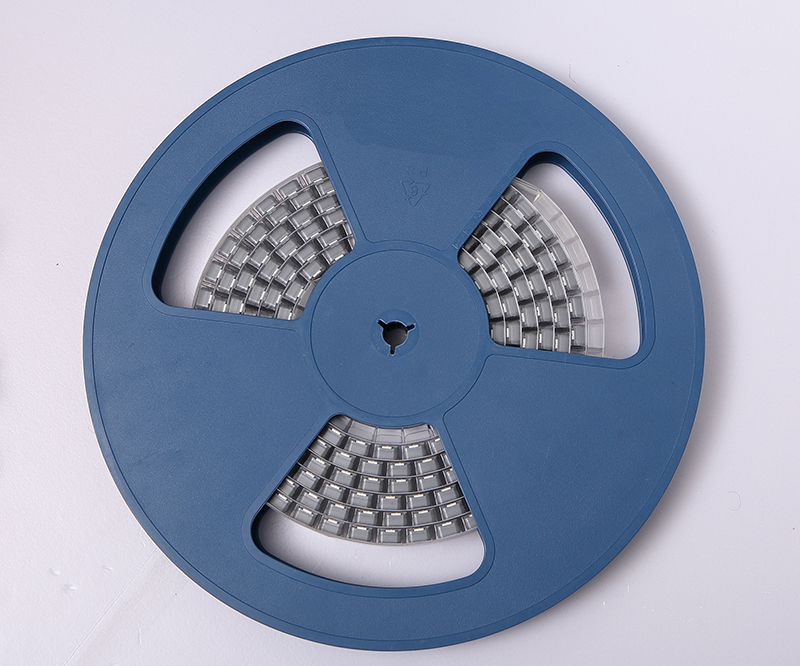

Tape and Reel Dimensions:(unit:mm)

Surface Mounting Type, Reel/Tape List:

PACKING TYPE	Reel Size(mm)				Tape Size(mm)									Q’ty, Pcs/reel
	A	B	G	N	E	F	D0	P	P0	P2	W	T	K0
LSMT-01	178	11	8.5	60	1.75	3.5	1.5	4	4	2	8	0.25	2.1	2000
02	178	15	12.5	60	1.75	5.5	1.5	8	4	2	12	0.30	1.7	1000
03	178	15	12.5	60	1.75	5.5	1.5	8	4	2	12	0.30	2.1	1000
04	330	17	12.5	100	1.75	5.5	1.5	8	4	2	12	0.35	3.0	2000
05	330	17	12.5	100	1.75	5.5	1.5	8	4	2	12	0.35	2.4	2000
06	330	21	16.5	100	1.75	7.5	1.5	12	4	2	16	0.35	5.5	2000
07	330	21	16.5	100	1.75	7.5	1.5	12	4	2	16	0.30	3.5	1500
08	330	21	16.5	100	1.75	11.5	1.5	12	4	2	24	0.40	5.9	1000
09	330	21	16.5	100	1.75	7.5	1.5	12	4	2	16	0.30	4.0	1000
10	330	29	24.5	100	1.75	11.5	1.5	16	4	2	24	0.30	4.2	1000
11	330	29	24.5	100	1.75	11.5	1.5	16	4	2	24	0.30	4.8	500
12	330	29	24.5	100	1.75	11.5	1.5	16	4	2	24	0.30	5.2	500
13	330	29	24.5	100	1.75	11.5	1.5	16	4	2	24	0.30	6.0	500
14	330	29	24.5	100	1.75	11.5	1.5	16	4	2	24	0.30	8.2	500
